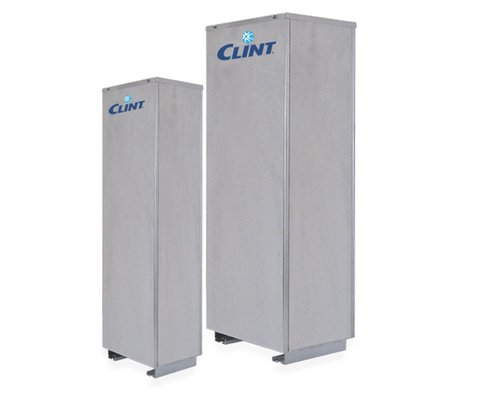

MR 30÷70
Remote hydronic modules

The Remote Hydronic Modules of the MR 30÷70 series are intended to solve technical problems resulting from thermal inertia in air conditioning systems for both residential and industrial use.
Installing a tank for cooled water allows units to reduce the operating cycles of the compressors, thus extending the useful life of the machines. It also results in a greater capacity of the system itself, a remarkable operational saving and a greater flexibility, being able to work with temperatures other than the design temperatures.
Versions
- MR 30 - 30 l. tank
- MR 70 - 70 l. tank
Features
- Self-supporting frame in peraluman. Easy to remove front panel allows access to the inside of the unit for maintenance and other necessary operations.
- Water circuit includes: insulated inertial tank, safety valve, automatic air release valves, expansion vessel inserted in the storage tank, gauge, air vent valve, plant charge and water drain.
Technical data
30 | 70 | |||
Water circuit | Tank water content | l | 30 | 70 |
Expansion vessel | l | 3 | 3 | |
Safety valve | bar | 3 | 3 | |
Water connections | "G | 1" | 1" | |
Weights | Transport weight | kg | 28 | 36 |
Operating weight | kg | 78 | 116 |
Dimensions
30 | 70 |
