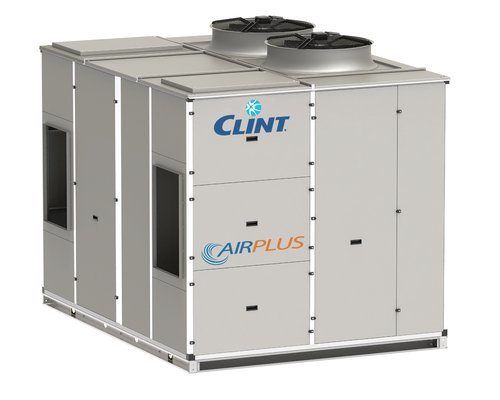

RTA/K/EC/WP 182-R÷453-R

Single Skin packaged Roof Top units with Scroll compressors and EC Inverter Plug-Fans

caldo_e_freddo1.png COMPRESSORE_SCROLL111.png icon_EC_inverter_PLUG-FAN.png _clint_icon_single_skin.png _icon_THCB_REC_18.png R410A1.png

The single skin packaged Roof Top units of this series are the ideal solution for air conditioning of medium-wide surfaces such as shopping malls and restaurants, canteens or for industrial areas. These units are equipped with Scroll compressors with R410A refrigerant, and are available in Reversible Heat Pump version also with Free-Cooling with 2 or 3 dampers. It is equipped with EC Inverter Plug-Fans with high energy efficiency backward blades both for intake as well as delivery, managed by an electronic control adjusting fans' rotational speed to adapt the air flow to the system capacity. The unit can easily adapt to diverse engineering needs thanks to the possibility of selecting onsite the air flow direction, choosing among 8 positions of both intake and output air direction. The unit's structure is made of a frame with extruded aluminium profiles and prepainted panels, and features flat type filters with varying efficiency levels, maintaining high air quality and high comfort.
The unit can be equipped, as an option, with the innovative Thermodynamic Coil-Boost Heat Recovery to achieve better performance and efficiency both in cooling and heating up to 15%.
The units are compliant to the ErP 2021 Regulation with ECA accessory (EC Inverter fans on condensing section).

Versions

  • RTA/K/EC/WP - Reversible Heat Pump
  • RTA/K/EC/WP/MS - Reversible Heat Pump with Free-Cooling section (2 dampers)
  • RTA/K/EC/WP/ECO - Reversible Heat Pump with Economizer (Free-Cooling section with 3 dampers)

Power range

  • 65.0-171 kW
  • 19.0-49.0 Ton

Features

  • Structure of base perimeter made of galvanised steel sheet elements. The frame is made of extruded aluminium alloy profiles connected by 3 way joints. The assembling of the base to the frame is of dual support and grants the walking on the base panels installation of which is effected without sticking out screws. The perimeter panels are realised in prepainted sheet steel, they can be easily removed and allow access inside the unit for maintenance and repair operations.
  • Scroll compressors with oil sight glass, internal overheat protection and crankcase heater.
  • Condenser and evaporator with copper tube and aluminium finned coil.
  • High efficiency delivery & intake reverse blade EC INVERTER PLUG-FANS, with electronic speed control to easily adapt to the system characteristics.
  • The air treatment section has removable panels allowing the selection of intake and output configurations that adapt to the specific needs of the system.
  • R410A refrigerant.
  • Electrical board includes: door interlocking isolator, fuses, thermal protection relays on compressors, thermocontacts for the fans of the condensing unit and contactors for the fan motors of the air handling unit.
  • Microprocessor for the automatic control of the unit.

Factory fitted accessories

  • IM Automatic circuit breakers
  • SL Unit silencement
  • THCB Thermodynamic Coil-Boost Heat Recovery (ECO only)
  • RFM Cooling circuit shut-off valve on discharge line
  • RFL Cooling circuit shut-off valve on liquid line
  • CT Condensing control down to 0 °C
  • CC Condensing control down to -20 °C
  • ECA EC Inverter fans on condensing section
  • TXC Condensing coil with pre-coated fins
  • TXE Evaporating coil with pre-coated fins
  • FT6 Plate filters efficency ePM10 75% (M6)
  • FT7 Plate filters efficency ePM1 50% (F7)
  • FT8 Plate filters efficency ePM1 65% (F8)
  • AT Constant air flow regulation control
  • AT/P Constant available static pressure regulation control
  • AT/C Control adjustment of the air flow according to the load
  • WS2 Hot water coil with 3-Way valve
  • EHG Electrical heater with step regulation
  • CH Enthalpic control (ECO only)
  • SQ Air quality probe
  • SQO Air quality probe (CO2)
  • SQV Air quality probe (CO2+VOC)
  • SSA Active sanitation systems for air and rooms
  • PF Differential pressure switch filters control
  • SB Fire sensor
  • SC Smoke sensor
  • IS Modbus RTU protocol, RS485 serial interface
  • IST Modbus TCP/IP protocol, Ethernet port
  • ISB BACnet MSTP protocol, RS485 serial interface
  • ISBT BACnet IP protocol, Ethernet port
  • ISS SNMP protocol, Ethernet port
  • IAV Remote set-point, 0-10V signal
  • IAA Remote set-point, 4-20mA signal
  • IAS Remote signal for second set-point activation
  • IDL Demand limit from digital input
  • CP Potential free contacts
  • MN High and low pressure gauges

Loose accessories

  • CS Dampers rain hood
  • CR Remote control panel
  • RP Coils protection metallic guards
  • AG Rubber shock absorbers
182-R202-R242-R262-R302-R363-R393-R453-R
HeatingHeating capacity (1)kW62,971,181,292,9107123142162
Absorbed power (1)(2)kW18,621,725,228,131,038,142,650,1
Heating (EN14511)SCOP with ECA accessory (3)3,243,263,263,303,303,263,283,28
Energy Efficiency with ECA Accessory (3)%127127127129129127128128
CoolingCooling capacity (4)kW64,973,885,696,8111128147171
Absorbed power (4)(2)kW20,924,227,230,035,441,145,954,1
Cooling (EN14511)SEER with ECA accessory (5)3,533,543,543,583,553,573,653,63
Energy Efficiency with ECA Accessory (5)%138139139140139140143142
Air treatment sectionAir flowm³/s2,502,783,343,614,444,445,836,67
Available static pressurePa200200200200200200200200
Fan11112222
FilterTipoG4G4G4G4G4G4G4G4
Air intake sectionAir flowm³/s2,002,222,672,893,553,554,725,33
Available static pressurePa100100100100100100100100
Fan11111111
Condensing sectionCompressor22222333
Refrigerant circuits11111111
Capacity steps22222333
Hot water coilHeating capacity (6)kW65,468,674,978,984,984,9103110
Air pressure dropsPa1619263043436886
Water flow (6)l/s1,561,641,791,892,032,032,462,62
Water pressure dropskPa1214151718182428
Water connections"G22222222
Electrical heaterPower supplyV/Ph/Hz400/3/50400/3/50400/3/50400/3/50400/3/50400/3/50400/3/50400/3/50
Heating capacitykW2127272741414148
Max absorbed currentA3039393959595969
Steps22224444
Electrical characteristicsPower supplyV/Ph/Hz400/3/50400/3/50400/3/50400/3/50400/3/50400/3/50400/3/50400/3/50
Max. running currentA44485761708597108
Max. starting currentA168170180193237208229275
Sound pressureSTD version (7)dB(A)6768717373737174
With SL accessory (7)dB(A)6465687070706871
WeightsTransport weightkg12801315137013801475157019202020
Operating weightkg12651300135513651460155519002000
Transport weight MS versionkg13201350139514151515161019402060
Operating weight MS versionkg13051335138014001500159519202040
Transport weight ECO versionkg13701400144514651565166019902110
Operating weight ECO versionkg13551385143014501550164519702090

Dimensions

182-R202-R242-R262-R302-R363-R393-R453-R
LSTD/MS/ECOmm29302930293029302930293039303930
WSTD/MS/ECOmm22002200220022002200220022002200
HSTD/MS/ECOmm23952395239523952395239524002400

Notes

  • 1 Condenser inlet air temperature 20 °C, ambient air temperature 7 °C d.b./6 °C w.b.
  • 2 Excluded the power absorbed by fans of air treatment section.
  • 3 Seasonal energy efficiency of heating with average climatic conditions. According to EU Regulation n. 2016/2281.
  • 4 Evaporator inlet air temperature 27 °C d.b./19 °C w.b.; ambient air temperature 35 °C.
  • 5 Seasonal energy efficiency of cooling. According to EU Regulation n. 2016/2281.
  • 6 Inlet air temperature 20 °C, water temperature 70/60 °C.
  • 7 Sound pressure level measured in free field conditions at 1 m from the unit. According to ISO 3744.
  • N.B. (1) Weights of MS and ECO versions are specified on technical brochure.
