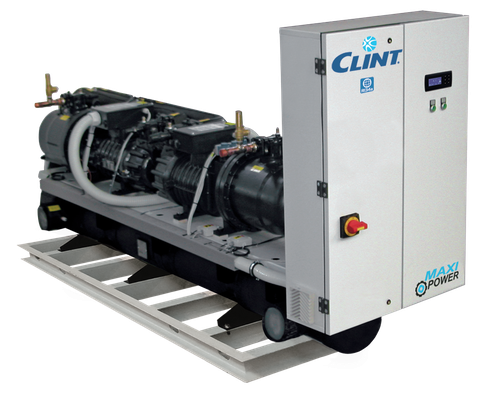

MEA/Y 1302-B÷9002-B

CONDENSERLESS LIQUID CHILLERS WITH SCREW COMPRESSORS AND SHELL AND TUBE EXCHANGER.

SOLO_FREDDO.png COMPRESSORE_VITE12.png SCAMBIATORE_FASCIO1.png GSM_ICON.png R134a_NEW1.png icon_refrigerant_R513A.png

The liquid Chillers for remote condensation of MEA/Y 1302-B÷9002-B series, with R134a refrigerant, are designed to satisfy the needs of the service sector or industrial systems which require high power with continual refrigerant delivery, space-saving units and quiet operation.
Combined with the remote condenser, these units are ideal for indoor installation and, equipped with a self-supporting structure that sustains the main components, they reduce the overall dimensions to a minimum while at the same time making installation and maintenance operations easier.
Equipped with latest generation Screw compressors and shell and tube exchanger, these units can also be produced in a super silent version. They have cooling and hydraulic circuits complete with everything necessary for quick installation and high energy efficiency. A series of accessories, factory fitted or supplied separately, rounds off the variety of equipment in this product range.

On request, units can be supplied for R513A refrigerant.

Versions

  • MEA/Y - Cooling only
  • MEA/Y/SSL - Super silenced cooling only

Power range

  • 235-2060 kW
  • 67.0-586 Ton

Features

  • Self-supporting galvanized steel frame protected with additional protection achieved via polyester powder painting.
  • Screw compressors with built-in oil separator, suction filter, crankcase heater, oil sight glass, thermal protection and stepless capacity steps.
  • Shell and tube evaporator with two independent circuits on the refrigerant side and one on the water side, complete with water differential pressure switch.
  • Cooling circuit shut-off valves on discharge and liquid line.
  • Electronic expansion valve.
  • Electronic high and low pressure gauges.
  • R134a refrigerant. On request R513A refrigerant.
  • Electrical board includes: main switch with door safety interlock, fuses, thermal protection relays for compressors.
  • Microprocessor control and regulation system.
  • Electronic high and low pressure gauges.
