WATERCOOLED LIQUID CHILLERS AND HEAT PUMPS WITH SCROLL COMPRESSORS AND PLATE EXCHANGERS.

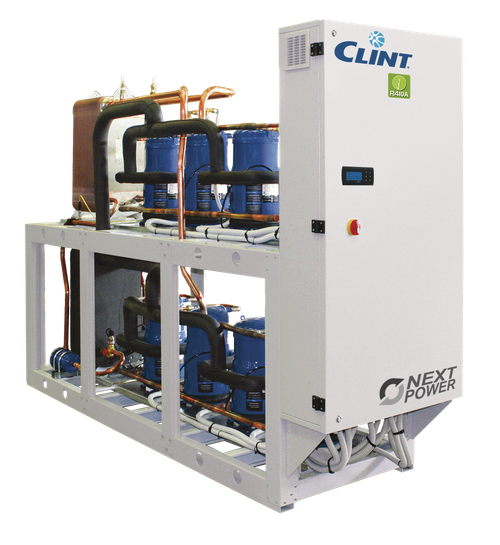

The CWW-M/K 724-P÷1306-P NEXTPOWER series, with R410A refrigerant, Scroll compressors and plate exchangers, is designed for medium and large industrial systems requiring high power, space-saving units and quiet operation.
These units are ideal for indoor installation reducing the overall dimensions to a minimum while at the same time making installation and maintenance operations easier.
High reliability is the key plus of NEXTPOWER, thanks to the use of components built in large series and the management of several compressors allowing an increased compressor life span and the reduction of machine stopping risks: a faulty compressor will not compromise the functioning of the unit, that will continue to work with decreased power levels.
NEXTPOWER obtains high energy yield with elevated ESEER values; thanks to the high partialization and the intelligent control module, it doesn’t require inertial storage tank.
- CWW-M/K - Cooling only
- CWW-M/K/WP - Reversible Heat Pump
- 235-533 kW
- 67.0-152 Ton
- Self-supporting galvanized steel frame protected with additional protection achieved via polyester powder painting.
- Scroll compressors with oil sight glass, internal overheat protection and crankcase heater.
- Condenser AISI 316 stainless steel braze welded plates type with two independent circuits on the refrigerant side and one on the water side.
- Evaporator AISI 316 stainless steel braze welded plates type with two independent circuits on the refrigerant side and one on the water side, complete with water differential pressure switch.
- Electronic expansion valve.
- R410A refrigerant.
- Electrical board includes: main switch with door safety interlock, protection modules and overload protection for compressors.
- Microprocessor control and regulation system.
