DXDXT-M/K 85÷660

Ducted Blower Split Systems. High ambient temperature (up to 52°C)

The ducted blower Split Systems of DXDXT-M/K series are the ideal solution for keeping the best comfort level in large-sized spaces as offices, shops, hotels or education facilities.
The range comprises 12 models from 85.000 BTU/h to 660.000 BTU/h and the systems are composed of one indoor unit connected to up to four outdoor units, depending on the cooling capacity required.
The systems operate with R410A refrigerant and feature Scroll compressor.
The units are designed for installation both in service rooms or built-in; the air ducts, totally hidden on the ceiling or on walls, provide the perfect comfort without compromising on the building architecture and design. Models over 140.000 BTU/h feature both horizontal and vertical air outlet, which can be chosen directly onsite, to allow the highest flexibility in installation.
The ducts ensure an even distribution of conditioned air to every corner of the room. Even multiple areas can be conditioned simultaneously just with one indoor unit.
The DXDXT-M/K models ensure the perfect functioning even on regions with high temperature, being able to work up to 52°C external air temperature.

Versions

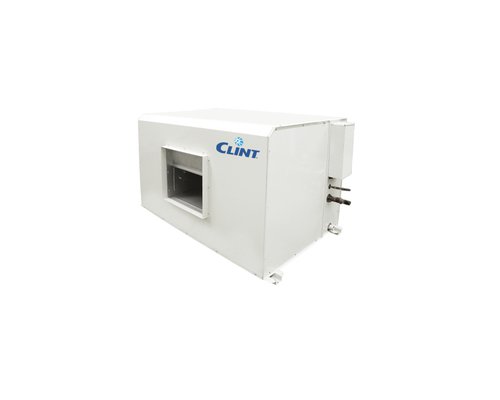

DXDXT-M/K - Cooling only (INU)
DXDXT-M/K - Cooling only (OTU)
DXDXT-M/K/WP - Reversible Heat Pump (INU)
DXDXT-M/K/WP - Reversible Heat Pump (OTU)

Caractéristiques

Indoor and Outdoor units are made of galvanized steel sheet with electrostatic powder paint. Indoor units are complete with polyethylene for thermal and acoustical purpose.
Scroll compressors with oil sight glass, with internal overheat protection and crankcase heater.
Indoor units are provided with radial fans, directly coupled with single-phase 3-speed electric motor (to build models' sizes 85 – 110) or to 3-phase motors by V belt and variable pulley (to build models' sizes 140 – 660). Outdoor units are provided axial fans directly coupled to electric motor.
Indoor units to build models' sizes 85 - 165 come with standard horizontal air discharge; indoor units to build models' sizes 140 - 165 are convertible to vertical air discharge on site. Indoor units to build models' sizes 220 - 660 come with standard vertical air discharge and they are convertible to horizontal air discharge on site.
Indoor and Outdoor units are provided with copper tube and aluminum finned coils precharged with nitrogen.
All Indoor units are provided with return air plenum and standard cleanable filter.
Microprocessor for the automatic control of the unit allowing continuous display of the operational status, control the set and real air temperature and, in case of partial or total unit stop, indication of security device that intervened through a wired wall pad as standard.
Units matching with two or more outdoor units are provided with a sequential controller allowing part loading of the system capacity.
Wired wall pad included on indoor unit.

Technical data

			85	110	140	165	220	280	330	390	440	495	560	660
Refroidissement	Puissance frigorifique (1)	BTU/h	75000	100000	125000	150000	200000	250000	300000	350000	400000	450000	500000	600000
	Puissance frigorifique (1)	kW	22,0	29,3	36,6	43,9	58,6	73,2	87,9	103	117	132	147	176
	Puissance absorbée (1)	kW	11,2	14,1	17,8	24,4	28,8	36,4	51,5	53,9	56,7	76,2	77,9	98,7
	Puissance frigorifique (2)	BTU/h	85000	111000	140000	165000	220000	280000	330000	390000	440000	495000	560000	660000
	Puissance frigorifique (2)	kW	24,9	32,5	40,6	48,3	64,4	82,0	96,7	114	129	145	164	193
	Puissance absorbée (2)	kW	9,4	11,8	14,9	20,5	24,1	30,5	43,1	45,2	47,5	63,8	65,3	82,7
Chauffage	Puissance thermique (3)	BTU/h	78200	104000	129700	155800	207600	259500	311400	363300	415200	467100	519000	622800
	Puissance thermique (3)	kW	22,9	30,5	38,0	45,6	60,8	76,0	91,2	106	122	137	152	183
	Puissance absorbée (3)	kW	8,7	11,5	14,5	20,5	23,5	29,6	42,0	43,9	46,2	62,1	63,5	80,4
Unité intérieure	Débit d'air max	m³/s	1,2	1,3	1,9	2,1	3,0	3,7	4,2	5,0	5,7	6,4	6,9	8,3
	Pression statique utile	Pa	150	150	150	150	150	200	200	200	200	250	250	300
	Raccordement liquide	inch	5/8"	5/8"	5/8"	5/8"	5/8"	5/8"	5/8"	5/8"	5/8"	5/8"	5/8"	5/8"
	Raccordement gaz	inch	1-1/8"	1-1/8"	1-3/8"	1-3/8"	1-1/8"	1-3/8"	1-3/8"	1-3/8" . 1-1/8"	1-1/8"	1-3/8"	1-3/8"	1-3/8"
	Drainage condensation	inch	1"	1"	1"	1"	1"	1"	1"	1"	1"	1"	1"	1"
	Pression sonore max (4)	dB(A)	56	57	58	59	60	62	65	65	66	67	68	68
Unité extérieure	Compresseur	n°	1	1	1	1	1	1	1	1	1	1	1	1
	Compresseur	Tipo	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll
	Raccordement liquide	inch	5/8"	5/8"	5/8"	5/8"	5/8"	5/8"	5/8"	5/8"	5/8"	5/8"	5/8"	5/8"
	Raccordement gaz	inch	1-1/8"	1-1/8"	1-3/8"	1-3/8"	1-1/8"	1-3/8"	1-3/8"	1-3/8" . 1-1/8"	1-1/8"	1-3/8"	1-3/8"	1-3/8"
	Pression sonore (5)	dB(A)	57	57	58	58	57	57	58	57	57-56	58	57	58
Longueur max liens	Distance maximale OTU-INU (6)	m	50	50	50	50	50	50	50	50	50	50	50	50
Longueur max liens	Hauteur maximale OTU-INU (6)	m	30	30	30	30	30	30	30	30	30	30	30	30
Caractéristiques électriques	Alimentation unité intérieure	V/Ph/Hz	230/1/50	230/1/50	400/3+N/50	400/3+N/50	400/3+N/50	400/3+N/50	400/3+N/50	400/3+N/50	400/3+N/50	400/3+N/50	400/3+N/50	400/3+N/50
	Alimentation unité extérieure	V/Ph/Hz	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50
	Courant max. de fonctionnement	A	25	31	34	44	53	69	90	101	105	136	147	176
	Courant max. de crête	A	119	129	180	243	148	212	288	244	194	255	284	366
Poids	Poids de transport unité intérieure (7)	kg	127	150	215	217	235	368	378	503	556	570	850	920
	Poids en fonctionnement unité intérieure (7)	kg	122	145	210	212	225	358	368	493	546	560	840	910
	Poids de transport unité extérieure (7)	kg	185	190	197	230	190	197	230	197 / 190	190	230	197	230
	Poids en fonctionnement unité extérieure (7)	kg	175	180	187	220	180	187	220	187/180	180	220	187	220

Dimensions

			85	110	140	165	220	280	330	390	440	495	560	660
L	UNITÉ INTERNE	mm	1580	1880	1575	1575	1905	1905	1905	1905	2420	2420	2420	2440
L	UNITÉ EXTERNE	mm	965	965	965	1130	965	965	1130	965	965	1130	965	1130
W	UNITÉ INTERNE	mm	765	765	985	985	985	1240	1240	1240	1520	1520	1520	1820
W	UNITÉ EXTERNE	mm	975	975	975	1110	975	975	1110	975	975	1110	975	1110
H	UNITÉ INTERNE	mm	430	430	870	870	870	1165	1165	1385	1385	1385	1385	1770
H	UNITÉ EXTERNE	mm	950	950	950	950	950	950	1000	950	950	1000	950	1000

Remarques

1 Température de l'air intérieur 27 °C b.s./19 °C b.u.; température de l'air extérieur 46 °C b.s.
2 Température de l'air intérieur 27 °C b.s./19 °C b.u.; température de l'air extérieur 35 °C b.s.
3 Température de l'air Intérieur 20 °C b.u./19 °C b.u.; température de l'air extérieur 7 °C b.s./6 °C b.h.
4 Pression sonore mesurée à une distance de 1 m et temps de réverbération de 0,5 s.
5 Niveau moyen de pression sonore mesurée en champ libre à 1 m de l'unité comme défini de ISO 3744.
6 Longueur maximale pouvant être atteinte avec un diamètre des tuyaux et des siphons appropriés.
7 Unité froid seul
