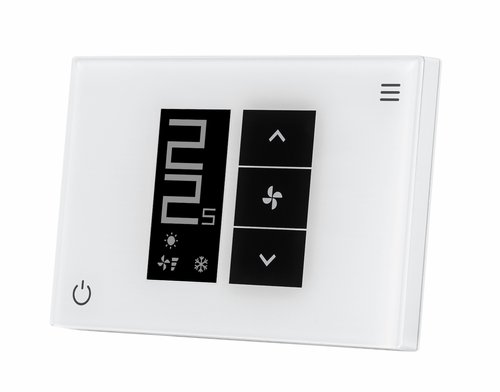

Pannello di controllo elettronico configurabile Wi-Fi a parete

Configurable electronic control panel, suitable for:
• 2-Pipe system.
• 2-Pipe system with electrical heater.
• 4-Pipe system.

Features:
• Touch display;
• Ambient thermostat;
• Mode: Off/Sum/Win;
• Unit management with EC motor:
- Fan speed: Speed control 0...100% continuous, or on three speeds Min/Med/Max;
- Management of 1 or 2 On/Off or 1 0÷10V modulating valves (230V-24V transformer not included);
• Unit management with AC motor:
- Fan speed: Min/Med/Max/Auto;
- Management of 1 or 2 On/Off or 0÷10V modulating valves (230V-24V transformer not included);
• Window/economy contact;
• Air probe included;
• WI-FI, Bluetooth and Modbus connectivity;
• Fully controllable via app;
• Compatible with Alexa and Google Assistant;
• Compatible with SNW4 water probe;
• Electric power supply: 230V-50Hz;
• Suitable for controlling up to a maximum of 8 units, which operate in the same way according to the settings of the single control panel.

The Wi-Fi SRH1 controls are compatible with Alexa and Google Assistant; they can also be fully controlled via a dedicated smartphone app, available for Android and iOS. Supported functions:
• Management of multiple environments, one per device;
• Remote on/off and switching between summer/winter modes;
• Manual setting of fan speed and setpoint temperature;
• Weekly programming based on hourly schedules;
• Real-time and historical monitoring of operating parameters.
